Engineering Series Connection & Through-Wiring LED Topology
Continuous-run series connection lighting (often referred to in electrical procurement as linkable battens, daisy-chain trunking, or loop-in/loop-out fixtures) eliminates redundant junction boxes and accelerates field commissioning by up to 68%.
Through-Wiring Harness & AWG Scaling
Standard luminaires often require separate feed cables for every run, generating enormous electrical labor and material overhead. Scoden series connection lights incorporate internal copper through-wire busbars (customizable in 3x1.5mm², 5x2.5mm², or 7x2.5mm² configurations).
- Supports up to 40 consecutive linear units per single power injection point
- Integrated 5-pole and 7-pole push-in quick-connect terminal blocks
- Mitigates thermal degradation across multi-meter continuous runs
Voltage Drop & Inrush Current Management
Long continuous series lighting runs can experience line voltage drops leading to chromaticity shifting and lumen attenuation at the terminal fixtures. Our engineering team calculates exact voltage drop tolerances under varying ambient loads.
- Total line voltage drop maintained under 2.5% over 100-meter daisy chains
- Soft-start constant current IC drivers preventing breaker nuisance tripping
- Active Power Factor Correction (PFC > 0.96) and THD < 10%
Environmental Sealing at Link Joint Interfaces
The principal failure point in linked installations is water and chemical ingress at joint couplers. Scoden utilizes UV-stabilized polycarbonate and silicone double-lip extrusion seals certified to IP65 and IP66 ingress protection criteria.
- Continuous hermetic seal with PG13.5 / M20 IP68 cable glands
- High IK08 / IK10 impact-proof extruded housing resist physical collisions
- Resistant to ammonia, caustic washdowns, and high pressure saline vapors
Localized Industrial & Commercial Application Scenarios
Across international infrastructure developments, series connection linear luminaires resolve unique spatial constraints, stringent sanitation requirements, and explosive risk protocols.
Automotive Assembly & Inspection
High-precision vehicle inspection bays demand continuous glare-free lighting without dark gaps between fixtures. Scoden series connection systems provide uniform 120-degree optical diffusion with high CRI (>85 Ra or >90 Ra), ensuring technicians detect paint inconsistencies and body panel clearances instantly.
Cold Storage & Food Processing
Operating down to -30°C in food-grade blast freezers, conventional fittings experience gasket brittleness and condensation short-circuits. Our IP66 series connection units feature non-toxic polycarbonate bodies, silicone gaskets, and instantaneous full-lumen output under extreme thermal transitions.
Automated Dark Warehouses
Modern AS/RS (Automated Storage and Retrieval System) distribution centers require ultra-long continuous lines mounted along narrow aisles up to 150 meters. Scoden linkable lights with integrated microwave motion sensors switch seamlessly from 10% standby glow to 100% illumination upon crane entry.
Offshore & Petrochemical Corridors
Pipe racks, offshore oil rig passages, and chemical refinery stairwells present both severe explosive risks (ATEX Zone 1/21, Zone 2/22) and aggressive salt spray. Our explosion-proof long-strip series lights feature marine-grade copper-free die-cast aluminum with specialized epoxy electrostatic coating.
Skodan Factory Infrastructure & Rigorous Production
Located in Beibaixiang Town, Yueqing, Zhejiang Province — China’s premier electrical and lighting manufacturing cluster. We engineer durable fixtures that mitigate operational risk for global importers and EPC engineering firms.
In-House Tooling & Extrusion
From aluminum die-casting molds for explosion-proof housings to high-precision co-extrusion dies for series PC tri-proof bodies, our internal tooling capacity eliminates third-party reliance and compresses sample lead times to 5–7 working days.
SKD / CKD Supply Chain Flexibility
To assist international partners in surmounting protective import tariffs and local content laws, we provide Semi-Knocked-Down (SKD) kits complete with pre-calibrated driver boards, SMT-mounted LED PCBs, custom wiring harnesses, and laser-marked enclosures.
Direct Engineering Collaboration
Work directly with bilingual lighting specialists, photometric engineers, and power supply designers. We produce comprehensive Dialux lighting simulations, photometric isolux diagrams, and customized wiring diagrams tailored precisely to your project bid tenders.
Global Industrial Lighting Landscape & 2025–2030 Roadmap
Industrial lighting is transitioning from passive illumination fixtures into smart, connected edge-nodes within automated facilities. Here is how our series linkable roadmap aligns with international ESG and building automation directives.
| Feature / Parameter | Legacy Series Lighting (Fluorescent/Basic LED) | Current Generation Scoden Series | 2025–2030 Smart Integrated Horizon |
|---|---|---|---|
| Wiring Architecture | External conduit with manual junction splices | Internal 3/5/7-core through-wire quick plug-in busway | Unified AC/DC Microgrid & Class 2 PoE integration |
| Luminous Efficacy | 70 – 90 lm/W | 120 – 160 lm/W (LM-80 tested chips) | 180 – 210 lm/W high-quantum photon conversion |
| Control Protocols | Switched line only / Local manual knobs | DALI-2, 0–10V Dimming, 5.8GHz Microwave radar | AI-optimized occupancy mesh, Bluetooth Mesh, Matter IoT |
| Safety & Compliance | Basic IP54 / Unsealed metal channels | Certified IP65/IP66, IK08/IK10, ATEX/IECEx Zone 1/2 | Predictive thermal failure alerts & self-testing emergency |
| Lifecycle TCO Saving | Baseline benchmark | 45% energy cut + 60% installation time saved | 72% total operational expense reduction |
Supply Chain Resilience & Yueqing Cluster
Yueqing’s concentrated low-voltage electrical ecosystem provides an extraordinary advantage. Raw aluminum ingots, optical resins, copper terminals, and high-frequency transformers are sourced within a 15-kilometer radius, insulating international buyers from global supply disruptions and ensuring competitive bulk pricing.
Global ESG & Carbon Border Adherence
With the EU Carbon Border Adjustment Mechanism (CBAM) and strict North American Title 24 energy mandates taking effect, our series fixtures prioritize recyclability, high power factor, modular component replacement (circular economy), and ultra-low cradle-to-gate embodied carbon footprints.
Adaptive CCT & Human-Centric Lighting
Advanced series models feature switchable dual-channel CCT (3000K / 4000K / 5000K / 6500K) and tunable wattage dip-switches. This allows stocking distributors to satisfy four distinct customer specifications with a single inventory SKU, maximizing inventory turnover.

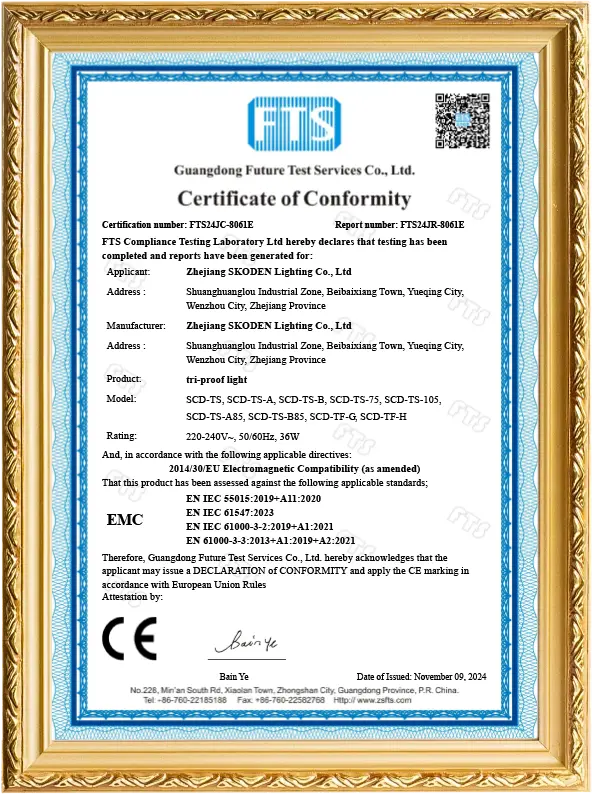

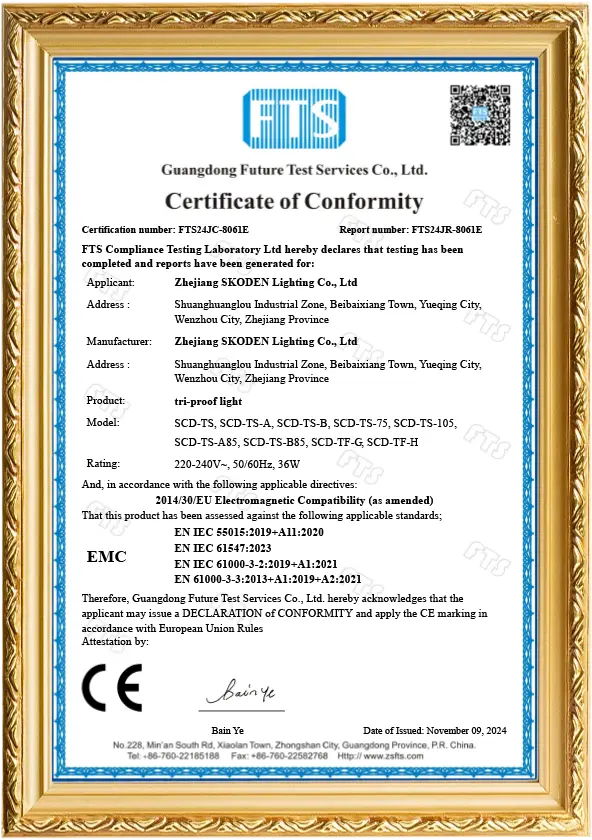

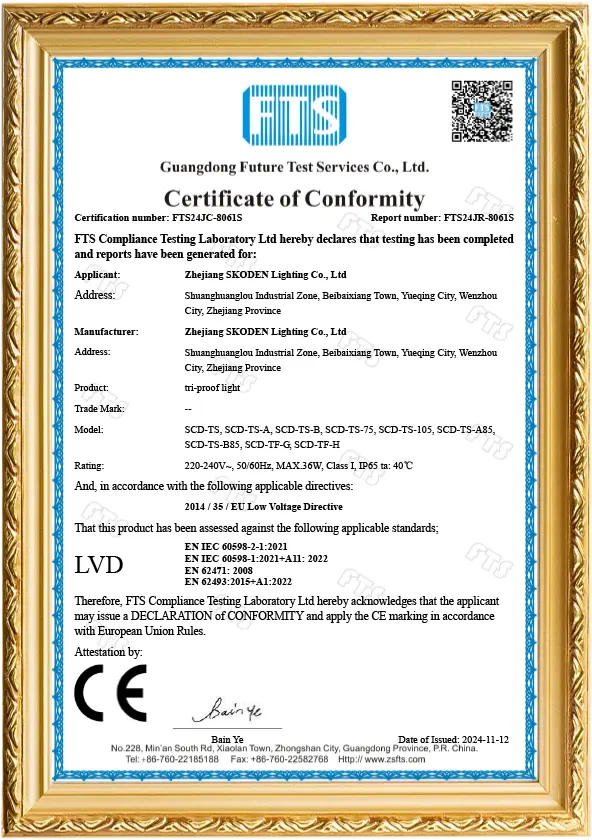

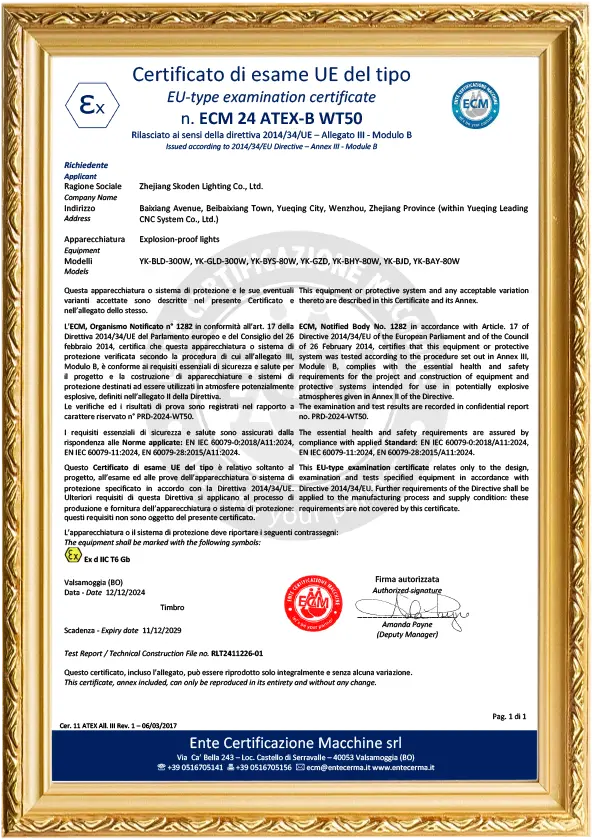

Audited Quality Systems & Verified Testing
International commercial and oil & gas projects require verified documentation. Scoden supplies full technical submittals, ISO 9001 quality audits, and verifiable factory testing logs with every production batch.
Trusted by Global Component Suppliers & Supply Chain Partners
Hazardous Area & Industrial Classification Criteria
Correct luminaire specification requires cross-referencing zone hazards, gas groups, and operating surface temperature limits according to IEC 60079 and EN standards.
1. Hazardous Atmosphere Frequency
Determine the temporal likelihood of an explosive gaseous or combustible dust environment:
- Zone 0 / 20: Continuous presence (>1000 hrs/year)
- Zone 1 / 21: Likely during normal operation (10–1000 hrs/year)
- Zone 2 / 22: Abnormal or brief hazard presence (<10 hrs/year)
2. Gas Group & Dust Types
Group categorization is dictated by the minimum ignition energy (MIE) of the prevailing chemical:
- Group IIA: Propane, methane, industrial solvents
- Group IIB: Ethylene, town gas, chemical intermediate
- Group IIC: Hydrogen, acetylene (highest explosion pressure)
- Group III: Combustible flyings (IIIA), non-conductive (IIIB), conductive dusts (IIIC)
3. Temperature Class (T-Class)
The maximum external luminaire temperature must never exceed the auto-ignition point of surrounding vapors:
- T1: ≤ 450 °C | T2: ≤ 300 °C
- T3: ≤ 200 °C | T4: ≤ 135 °C
- T5: ≤ 100 °C | T6: ≤ 85 °C (Safest rating for volatile compounds)
Frequently Asked Engineering & Procurement Questions
Technical clarifications addressing real RFQ dilemmas submitted by electrical contractors, MEP engineers, and industrial wholesalers.
What is the maximum quantity of series connection lights that can be linked in a continuous line?
The maximum linkable count depends on input voltage (e.g., 230VAC vs. 120VAC), fixture individual wattage, through-wire AWG cross-section (1.5mm² vs. 2.5mm²), and upstream breaker sizing (e.g., Type C 16A). For a standard 40W fixture on a 230V line with 2.5mm² wiring, up to 36 to 40 luminaires (approx. 1440W–1600W total line load) can be linked continuously without exceeding allowable line voltage drops (<3%) or risking inrush circuit breaker trips.
How does an LED tri-proof light differ fundamentally from an explosion-proof luminaire?
A tri-proof light is designed primarily to resist water ingress (IP65–IP66), dust ingress (IP6X), and physical impact or corrosion (IK08–IK10) using sealed polycarbonate or PMMA housings. In contrast, an explosion-proof luminaire is constructed to contain an internal explosion and prevent ignition of surrounding explosive atmospheres (ATEX/IECEx Zones 1/2 or 21/22), featuring heavy-duty flameproof (Ex d) or increased safety (Ex e) metal housings with calibrated flame paths and certified surface temperatures (T-Class).
Can Scoden provide customized OEM private labeling, branding, and customized packaging?
Yes. As a direct Yueqing manufacturer, Zhejiang Skodan Lighting Co., Ltd. provides comprehensive OEM/ODM services. This includes precision laser-etched custom logos on housings, bespoke outer cartons with distributor barcoding, customized color temperature (CCT) profiles, specific beam angles (e.g., 30° / 60° / 90° / 120°), and specialized mounting brackets suited to regional strut channel systems.
How do integrated microwave motion sensors interact across a series link run?
Scoden offers both autonomous sensor configurations and "Master-Slave" broadcast configurations. In an autonomous setup, individual fixtures ramp to 100% brightness only when movement is detected directly underneath. In a Master-Slave setup using a dedicated control bus line within the through-wiring harness, a single detection by the lead luminaire triggers the entire continuous row to illuminate synchronously.
What is the protocol for emergency battery backup integration in continuous linkable runs?
Our emergency series models incorporate a permanent live sensing wire alongside the switched line inside the through-wiring bus. When main grid AC power is interrupted, internal intelligent micro-inverters switch the fixture into emergency discharge mode within 100 milliseconds, operating internal high-temperature LiFePO4 cells to sustain 90 to 180 minutes of life-safety compliant emergency light at 15–30% lumen output.
How does purchasing direct from Yueqing lower total project procurement costs?
Eliminating multi-tiered trading brokers allows international buyers to save 22% to 35% on FOB/CIF unit pricing. Furthermore, by consolidating linear tri-proof lights, explosion-proof floodlights, and batten stent lamps into a single standardized container load directly from our Yueqing factory, distributors optimize sea freight volume, streamline customs clearance, and gain direct warranty backing from the manufacturing engineers.
