High-Efficiency Automotive Workshop Tri-Proof & Hazardous Lights
Explore our precision-engineered, IP65–IP66 sealed LED fixtures manufactured to withstand chemical degreasers, mechanical shock, and flammable hydrocarbons.
20–50W Round Mini Explosion Proof Ceiling Light
30–50W Rectangular Explosion Proof LED Flood Light
10–24W AC85–265V 120lm/W High-Lumen Explosion Light
High Lumen 120lm/W Round Mining & Service Bay Light
100W+30W Emergency Backup Industrial Tri-Proof Luminaire
75–300W Compact Tri-Proof Workshop High Bay Light
Long Strip LED Explosion-Proof Batten Light 20–60W
The Evolution of Automotive Workshop Illumination: Navigating Industry 4.0 & EV Mandates
Modern automotive workshops have transitioned from basic mechanical service garages into sophisticated, high-technology environments demanding specialized photometric fidelity and rigorous environmental sealing.
The Electric Vehicle (EV) Hazard Horizon
The global shift toward electric mobility introduces volatile chemistry into workshops. Lithium-ion traction battery servicing, cell degreasing, and testing demand luminaires compliant with Class I, Zone 2 and Zone 22 combustible dust/vapor standards. Standard retail battens fail when exposed to volatile organic compounds (VOCs) and localized off-gassing during thermal runaways.
Aggressive Chemical & Solvent Exposure
Automotive detailing and mechanical overhaul expose luminaires to aerosolized synthetic engine oils, glycol-based brake fluids, solvent degreasers, and aggressive vehicle wash detergents. Standard polystyrene diffusers degrade, turn yellow, and crack. Industrial-grade tri-proof luminaires demand UV-stabilized polycarbonate (PC) or PMMA with anti-corrosive neoprene seals.
Ergonomics, Glare, and Inspection Precision
Precision diagnostics, body paint touch-ups, and undercarriage repairs require high Color Rendering Index (CRI Ra > 80, optionally Ra > 90) and low unified glare ratings (UGR < 19). Stroboscopic flicker caused by low-frequency LED drivers leads to mechanic eye fatigue and introduces dangerous stroboscopic optical illusions around revolving engine belts and wheel balancers.
Comprehensive Technical Architecture: Tri-Proof & Hazardous Engineering
Scoden Lighting builds fixtures with a rigorous understanding of the boundary between conventional IP-rated vapor-tights and certified explosion-proof enclosures.
| Performance Parameter | Standard Commercial Batten | Scoden Automotive Tri-Proof | Scoden Heavy Explosion-Proof (Ex d / Ex ec) |
|---|---|---|---|
| Ingress Protection Rating | IP20 – IP44 (Dust permeable) | IP65 / IP66 (Continuous high-pressure jet proof) | IP66 / IP67 / IP68 (Hermetically gas-tight) |
| Impact Resistance (IK Code) | IK02 – IK04 (Easily shattered by tools) | IK08 – IK10 (5J to 20J impact proof) | IK10+ (Armored tempered glass & ADC12 alloy) |
| Housing Material Formulation | Thin recycled PVC / Polystyrene | Co-extruded Bayer PC / PMMA + Silicone Gaskets | Copper-free Die-Cast Aluminum (A383/ADC12) |
| Driver Electrical Architecture | Linear non-isolated, THD > 25% | Isolated Constant Current, PF > 0.95, THD < 10% | Encapsulated surge-proof driver (6kV–10kV surge) |
| Automotive Zone Suitability | Dry storage, admin cubicles | Washing bays, mechanical pits, tire mounting | Paint spray booths, battery mixing, chemical stores |
Macro Industry Solutions: Targeted Workshop Zoning
From dangerous paint mixing bays to high-throughput inspection tunnels, our customized ODM lighting configurations ensure zero-downtime operation.
1. Spray & Paint Curing Booths (ATEX Zone 1/2)
Automotive spray painting generates atomized airborne solvents and volatile lacquer mist. Our SCD-Ex series provides Class I, Group IIA/IIB/IIC explosion protection, low temperature classes (T4–T6 ≤ 85°C–135°C), and CRI Ra > 95 for seamless color matching without chromatic aberration under natural daylight conditions.
2. Undercarriage Inspection Pits
Inspection pits collect heavier-than-air fuel vapors, oil droplets, and corrosive transmission fluids. Luminaires installed in floor recesses must combine IP66 fluid isolation with IK10 impact fortitude against dropped spanners and heavy hydraulic transmission jacks, operating safely on low-voltage DC24V/DC36V or isolated AC inputs.
3. Automated Car Wash & Detailing Bays
Subjected to perpetual 100% relative humidity, hot water pressure washers, and aggressive ceramic coating waxes. Scoden full-plastic PC extruded tri-proof linear lamps feature seamless dual-color co-extrusion technology, ensuring zero gasket dry-rot, waterproof cable glands, and long continuous runs via quick-connect through-wiring.
4. EV Battery Assembly & Dyno Cells
Dynamometer rooms and high-voltage battery service bays demand continuous flicker-free illumination compatible with high-speed diagnostic cameras. Scoden luminaires incorporate smart microwave occupancy sensors and 0–10V/DALI multi-mode dimming to minimize standby consumption during unattended test cycles.
Scoden Yueqing Factory Capabilities & OEM / ODM / SKD Programs
Based in Yueqing, Zhejiang—widely acclaimed as China's "Electrical Capital"—Zhejiang Skodan Lighting Co., Ltd. provides global brands and EPC engineering contractors with end-to-end manufacturing flexibility.
Private Mould ODM Tooling
Our in-house R&D team engineers custom tooling for specialized automotive workshops, from low-profile extruded aluminum housings to optical diffusers engineered with asymmetrical beam angles that illuminate engine bays without blinding vehicle mechanics.
SKD Kit Supply Programs
To reduce high tariff barriers in key markets (South America, Europe, SE Asia), we provide Semi-Knocked Down (SKD) kits. We ship pre-machined heat sinks, tested LED driver modules, and optical diffusers ready for fast local final assembly.
In-House IES Photometric Testing
Equipped with an in-house darkroom goniophotometer, we furnish accurate IES and LDT photometric data files for DIALux / Relux calculations. Ensure your project tenders satisfy required illuminance (500–1000 lux) right from the start.
100% Hi-Pot & Full Aging Tests
Every single fixture leaving our production line undergoes rigorous 1500V–3750V withstand-voltage insulation testing, ground bond checking, and 100% elevated temperature burn-in cycles over 4 to 8 hours to eliminate premature field failures.

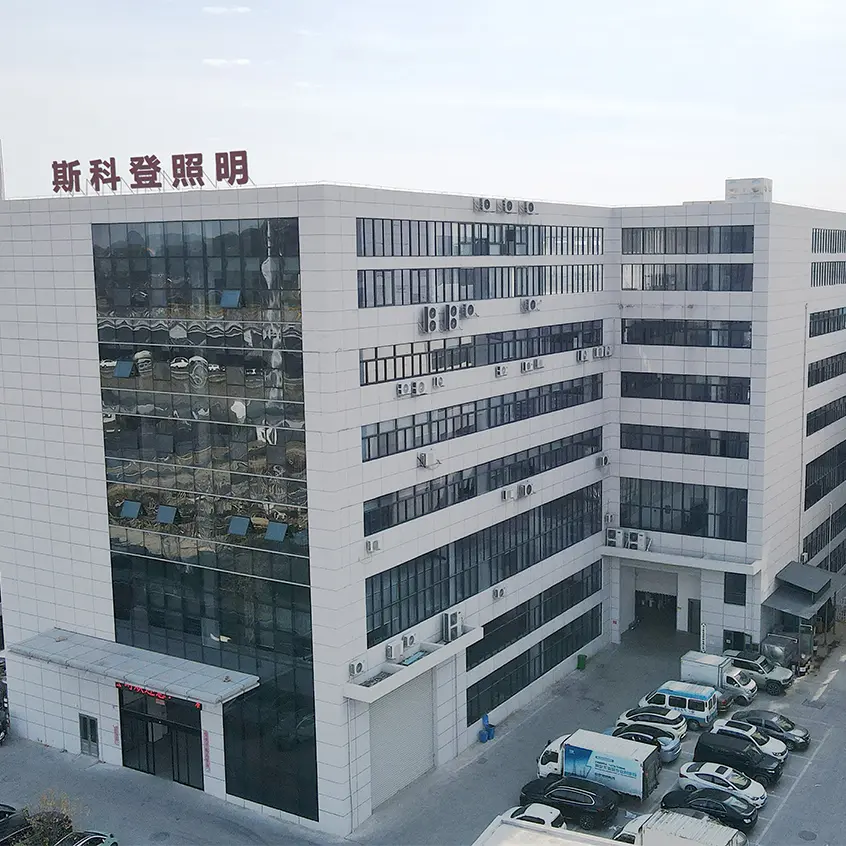

Inside Scoden's Yueqing Manufacturing Center
Our facility hosts high-speed cutting machines, punching presses, automated glue dispensing machines, and laser engraving units. Whether you require custom brand laser etching, bespoke wire harnesses, or specific emergency battery duration packs, our engineering specialists execute orders with rapid delivery cycles.
Global Enterprise Procurement Dynamics: TCO & Risk Mitigation
Industrial workshop lighting procurement requires factoring in long-term maintenance cycles, electrical efficiency gains, and warranty accountability.
Total Cost of Ownership (TCO)
In high-bay automotive facilities operating 16 to 24 hours daily, luminaire energy consumption represents 72% of lifetime cost, replacement labor represents 19%, and fixture purchase represents merely 9%. Specifying 130–160 lm/W high-efficacy luminaires yields amortized payback within 11 months.
Chain of Custody & Component Tiering
We configure luminaires with world-class components: Lumileds, Osram, or Sanan SMD chips mounted on high-conductivity aluminum PCBs (thermal conductivity > 2.0 W/m·K) driven by isolated Lifud, MeanWell, or Philips drivers to safeguard MTBF ratings beyond 50,000 hours (L80B10).
Rapid Prototype Verification
To eliminate procurement uncertainty, Scoden provides accelerated sample proofing within 3 to 7 working days, accompanied by complete photometric test reports, thermal dissipation imaging, and mechanical fit checks prior to mass tool manufacturing.
Global Regulatory Frameworks, Safety Certifications & ISO 9001
Certified verification for international project tenders. Our fixtures align with the harmonized IEC 60079 series, CE-LVD/EMC directives, and international environmental regulations.
ISO 9001 System Registration
EMC & LVD Lab Test Report
Environmental Ingress & IK Proof
Ex Conformity Documentation
Technology Roadmap: Smart Factory Tri-Proof Lighting (2026–2030)
Anticipating the technological demands of automated smart factories, gigafactories, and robotic workshop facilities.
AI-Powered Wireless Mesh & Predictive Maintenance
By integrating Bluetooth Mesh / Zigbee transceivers inside the sealed end-caps of tri-proof linear fixtures, individual lights report operating temperatures, voltage spikes, and cumulative lumen depreciation back to workshop facility management software. Predictive alerts allow workshops to schedule driver servicing prior to sudden fixture failures during critical operating shifts.
Li-Fi Data Security
Optical wireless communication (Li-Fi) embedded directly into workshop ceiling fixtures enables RF-silent transmission of onboard vehicle ECU software updates without electromagnetic interference in dyno testing cells.
Circadian Tunable White (3000K–6500K)
Dynamic correlated color temperature adjustments mimic natural daylight rhythms across night shifts. This reduces mechanic error rates during critical safety tasks, such as high-voltage busbar connections and brake line torque verification.
Circular Economy Remanufacturing
Fully serviceable modular extrusions. Our clip-free, dual-lock end-cap mechanisms permit tool-less LED engine and driver module updates over a 15-year chassis lifecycle, cutting e-waste by 65%.
Frequently Asked Questions: Automotive Workshop Illumination
Clear answers from our senior engineering team covering thermal limits, chemical degradation, and international OEM supply logistics.
What distinguishes a standard IP65 tri-proof light from a certified explosion-proof light in an automotive workshop?
How do automotive brake fluids and degreasing agents affect plastic diffusers, and what materials are recommended?
Does Scoden support OEM private labeling and custom length or wattage modifications?
What are the minimum illuminance (Lux) recommendations for modern automotive dealerships and repair centers?
Can Scoden fixtures incorporate emergency battery backup and microwave motion sensors?
What documentation is provided for international engineering project submittals?
Engineering Insights & Industrial Lighting News
Practical guides from our Yueqing research center on hazardous location classifications and solid-state luminaire retrofitting.
Product Guide · 26 Dec 2025
The Introduction of Explosion-Proof Light: SCD-U1500 UFO High Bay
A technical teardown of the SCD-U1500 high-bay luminaire: thermal chamber isolation, finless cast-aluminum heat-sinks, and how to safely replace legacy HID fixtures in hazardous environments.
Read White Paper
Engineering Knowledge · 25 Dec 2025
What Is a Bracket Light? A Technical Evaluation for Industrial Buyers
Analysis of bracket and stent luminaires: mechanical mounting options, continuous daisy-chain configurations, and balance between optical throw and physical profile in low-clearance bays.
Read Technical GuideTrusted Across the Global Industrial Lighting Supply Chain
We collaborate with component suppliers, regional distributors, and mechanical contractors worldwide to build long-term value.
Automotive Workshop Tri-Proof & Hazardous Lighting Portfolio
Select from our factory-direct luminaire configurations designed for direct replacement of obsolete fluorescent and HID fixtures.
LED Cleanroom & Inspection Ceiling Panel Light
20–50W Heavy-Duty Round Service Bay Light
High-Impact Undercarriage Pit Ceiling Luminaire
100W+30W Multi-Cavity Emergency LED Flood
Long Strip Continuous Linear Tri-Proof Batten
Plan Your Automotive Workshop Lighting With Scoden
Request comprehensive product datasheets, dialux IES files, and custom OEM/SKD quotations directly from our engineering team in Yueqing, China.
